LED Lighting Solutions

Solutions to Suit Every Budget

Making the change to LED will ensure you are operating more efficiently: saving you money on energy bills, providing safety for you and your staff, all while improving your working environment

Lainnir LED Lighting Solutions



Lainnir Focas

Factories, warehouses, terminals, industrial refrigerators,
shops, parking lots, food and medical industry,
car-care centres

Mid bay and high bay lighting fixtures
Output 12715 to 52030 lm
Light color 4000 K
Product details

Lifetime L90 > 100,000 hours
Comes with a 5-year warranty
Operating temperature -40°C to +50°C

Lainnir Focas 1
Output 12715 to 23251 lm

Sizes
710 x 85 x 70 mm (80W)
890 x 85 x 70 mm (100W)
1060 x 85 x 70 mm (120W)
1230 x 85 x 70 mm (150W)

Lainnir Focas 2
Output 13482 to 21772 lm

Sizes
1450 x 85 x 70 mm (80W)
1740 x 85 x 70 mm (100W)
2020 x 85 x 70 mm (115W)
2310 x 85 x 70 mm (130W)

Lainnir Focas 3
Output 17508 to 25603 lm

Sizes
880 x 85 x 70 mm (100W)
1160 x 85 x 70 mm (150W)

Lainnir Focas 11
Output 25430 to 46502 lm

Sizes
765 x 260 x 75 mm (160W)
945 x 260 x 75 mm (200W)
1115 x 260 x 75 mm (240W)
1285 x 260 x 75 mm (300W)

Lainnir Focas 33
Output 25430 to 52030 lm

Sizes
765 x 260 x 75 mm (160W)
945 x 260 x 75 mm (200W)
1115 x 260 x 75 mm (240W)
1285 x 260 x 75 mm (300W)



Lainnir Solas

Parking places, warehouses, terminals, industrial refrigerators, shops, the food and medical industry, the furniture industry, car-care centres and parking places
The low bay fixture
Output 5700 lm to 22910 lm
Light color 2700 – 6500 K
Product details

Lifetime L90 > 100,000 hours
Comes with a 5-year warranty

Lainnir Solas 1
Output 11060 lm to 22910 lm
Power consumption 70W, 100W, 130W, 145W
Operating temperature -25°C to +65°C

Sizes
620 x 100 x 77 mm
920 x 100 x 77 mm
1220 x 100 x 77 mm
1420 x 100 x 77 mm

Lainnir Solas 2
Output 13482 to 21772 lm
Power consumption 36W, 50W, 70W, 90W
Operating temperature -20°C to +35°C
Optical cover Opal, Micro prismatic

Sizes
620 x 67 x 58 mm
920 x 67 x 58 mm
1220 x 67 x 58 mm
1520 x 67 x 58 mm



Lainnir Pro

General lighting for industries, shops, warehouses, parking places or wet environments
Efficacy 130 – 164 lm/W
Light color 2700K – 6500 K
Polycarbonate vandal proof case with matt and clear diffusers

Product details

Possible with secondary optics with narrow, medium and wide beam.
Mounting brackets from spring steel or stainless steel.
Brackets can be positioned over full length of luminaire.
Lifetime L90 > 100,000 hours
Comes with a 5-year warranty

Lainnir Pro 1
Efficacy up to 139 lm/W
Light color 2700K – 6500 K
Operating temperature – 25°C to +40°C

Sizes
1200 mm x 72 mm x 68 mm,
1500 mm x 72 mm x 68 mm

Lainnir Pro 2
Efficacy up to 165 lm/W
Light color 3000 – 4000 – 5000 K
Operating temperature – 15°C to +40°C

Sizes
1200 mm x 72 mm x 68 mm,
1500 mm x 72 mm x 68 mm



Lainnir Batton

Parking places, warehouses, terminals, industrial refrigerators, shops on processing, the furniture industry.
Dusty and humid environments

The low bay fixture
Light color 3000 – 4000 – 5000 K
Product details

Thanks to the construction principles of gasket, closing system and diffuser our LED fixtures ensure a high grade of protection (IP 65) against dust, contamination and water permeation. Diffuser with extremely high light efficiency through high light permeability, unique on the market, (up to 93% light transmissivity), an excellent light uniformity through well-balanced light dispersing (no shadows), elimination of the dazzling effect (no glaring), aesthetical appearance (no dots of the single LEDs), keeping the usual, well known features of the diffuser such as chemical and heat resistance, mechanical features, UV-stabilization etc. Housing is made of flame retardant glass-fibre reinforced polyester (on request suitable for 850°C glow wire test too), in light grey (RAL7035) colour. Glass-fibre reinforced polyester has very good temperature resistance, mechanical stability, furthermore it is a good electrical insulator, it resists the impacts of several chemicals and the impacts of weather conditions. Its stability of size and shape at changing temperatures is excellent.
Lifetime L70 > 60000 h
Comes with a 5-year warranty.

Operating temperature – 15 °C to + 35 °C
Power consumption 20W, 40W, 60W

Sizes
670 mm x 90 mm x 95 mm
1270 mm x 90 mm x 95 mm,
1570 mm x 90 mm x 95 mm



Lainnir Line

Linear lighting system is an energy-efficient and cost effective light solution for industrial, commercial and other indoor applications.
Designed to be used in a continuous line, or as independent luminarie.
Light color 3000 – 4000 – 5000 K
Efficacy up to 167 lm/W
Product details

Made as simple as possible giving up with unnecessary components, but still with good quality of light and high lumen output.
Lifetime L70 > 80000 h
Comes with a 5-year warranty

Operating temperature – 15°C to +40°C
Power consumption 30 W , 40 W, 55 W, 60 W, 70 W, 75 W, 80 W

Sizes
600 mm x 50 mm x 49 mm
900 mm x 50 mm x 49 mm
1200 mm x 50 mm x 49 mm
1500 mm x 50 mm x 49 mm



Lainnir Downlight

IP65 rated downlight for wet premises.
Shallow depth of the product to fit small spaces, perfect for standard ceiling height as well as vaulted ceilings.
Mains dimming and 1-10V dimming applications
Light color 3000 – 4000 K

Product details

Housing Material Aluminium, Glass
Lumen 750 – 847 lm
Efficacy 90.00 – 102.00 lm/W
Comes with a 5-year warranty

Beam Angle / Optic Type 60°
Power consumption 8.30 W
Dimensions Ø88×70
Driver output current 180mA

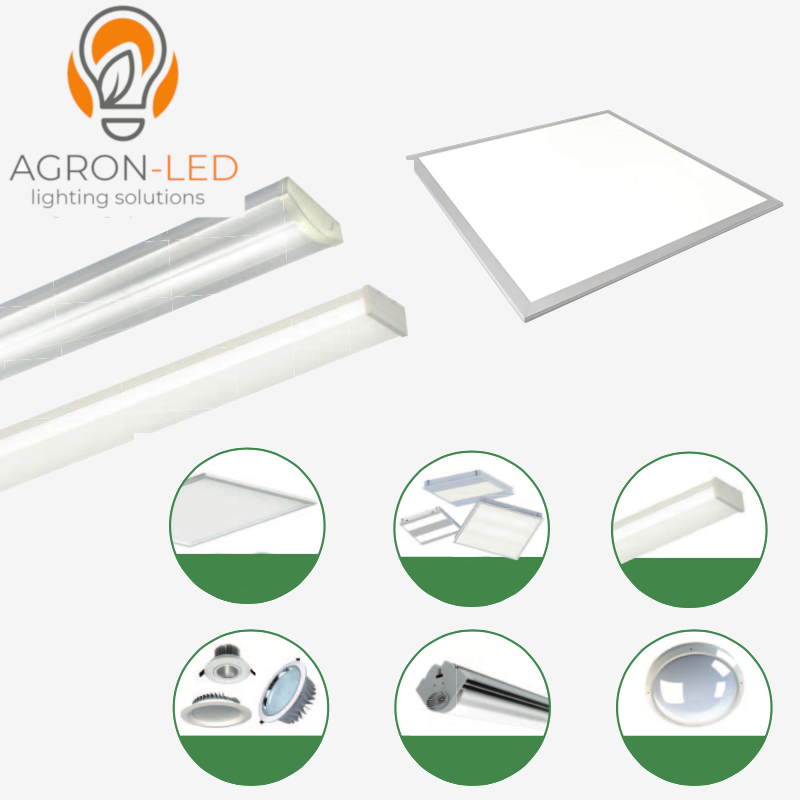

Lainnir Back lit panel

Created for replacement of fluorescent lamp fixtures.
It has 50% energy saving, high brightness and even light, fast start, no flickering and noise. 9-points uniformity, even and soft light, no glare, no shadow, no dark area.
Light color 3000 – 4000 – 5000 K

Product details

Lifetime > 30,000 hours
IK Rating IK08
IP Class IP40
Lumen 4806 lm
Comes with a 3-year warranty

Efficacy up to 126.00 lm/W
Operating temperature – 40°C to +25°C
Size 595 x 595 x 30 mm
Power consumption 30 – 36 – 40 W



Lainnir Edge lit panel

Created for replacement of fluorescent lamp fixtures.
It has 50% energy saving, high brightness and even light, fast start, no flickering and noise. even and soft light, no glare, no shadow, no dark area.
Light color 4000 K

Product details
Lifetime > 50,000 hours
IK Rating IK08
IP Class IP40
Lumen 4000 lm
Efficacy up to 100.00 lm/W
Comes with a 3-year warranty

Operating temperature – 40°C to +25°C
Power consumption 30 – 36 – 40 W

Sizes
595 x 595 x 10 mm
295 x 1195 x 10 mm

ilight LED Lighting Solutions



Floodlight IL - TFL4 - TFL6 - TFL10

Wide range of application – from functional illumination for automobile parking’s, platforms before buildings, industrial territories, ground storage’s or transport terminals, up to set of types of street illumination, decorative application, illumination of recreational zones and etc.
IL-TFL4 400/480W from 56800 to 72480 lm
IL-TFL6 600/720W from 85200 to 108720 lm
IL-TFL10 1000/1200W from 142000 to 181200 lm
Product details

High quality of powerful light-emitting diodes of company Lumileds®, reliable power source with power control possibilities and special optic lens provides excellent lighting options, at the same time saving huge amounts of energy and maintenance costs.
Lifetime L90 B10 > 100,000 hours (Ts = 25°C)
Comes with a 5-year warranty

Operating temperature -40°C to +40°C
Light color 3000 – 4000 – 5000 K
Efficacy 142-151 lm/W

IL-TFL 1000/1200W
Output 142000 to 181200 lm
Size 585 x 790 x 160 mm

IL-TFL6 600/720W
Output 85200 to 108720 lm
Size 585 x 495 x 160 mm

IL-TFL10 1000/1200W
Output 142000 to 181200 lm
Size 585 x 790 x 160 mm



Floodlight FLX S - FLX M - FLX B

Wide range of application – from functional illumination for automobile parking’s, platforms before buildings, industrial territories, ground storage’s or transport terminals, up to set of types of street illumination, decorative application, illumination of recreational zones and etc.
IL-FLX S from 6650 to 23400 lm
IL-FLX M from 22400 to 35280 lm
IL-FLX B from 36400 to 44100 lm

Product details

High quality of powerful light-emitting diodes of company Lumileds®, reliable power source with power control possibilities and special optic lens provides excellent lighting options, at the same time saving huge amounts of energy and maintenance costs.
Lifetime L90 B10 > 100,000 hours (Ts = 25°C)
Comes with a 5-year warranty

Operating temperature -40°C to +40°C
Light color 3000 – 4000 – 5000 K
Efficacy 130 – 152 lm/W

IL-FLX S
Output 6650 to 23400 lm
Size 357 x 447 x 62 mm
Power consumption 70W, 100W, 130W, 145W

IL-FLX M
Output 22400 to 35280 lm
Size 417 x 447 x 62 mm

IL-FLX B
Output 36400 to 44100 lm
Size 477 x 517 x 62 mm

ENIM LED Lighting Solutions



ENIM MPL & MPL-T

Photometric solutions for lighting streets, highways, parking stations, railway platforms, pedestrian areas, parks, and bike paths and etc.
Various types of power (up to 120W and various optical light distributions. Maintenance without tools. Control: 1-10V, DALI, DSI, chronoSTEP. Housing: high-pressure die-cast aluminum, painted.

Product details

NEW Energy efficient luminaires.
Harmonious shape and aesthetic design, high performance and efficiency.
Lifetime L90 B10 > 100,000 hours
Comes with a 5-year warrant

Light color 2700 – 6500 K
Operating temperature -40°C to +40°C
Efficacy Up to 162 lm/W
Power From 10 W to 120 W

MPL
Recommended mounting height: 6 – 12 m.

MPL-T
Recommended mounting height: 4 – 12 m.



ENIM IRIS 1 5050 - 1 SQ - 2 5050 - 2 SQ

Photometric solutions for lighting streets, highways, parking stations, railway platforms, pedestrian areas, parks, and bike paths and etc.
Various types of power (up to 200W and various optical light distributions. Maintenance without tools. Control: 1-10V, DALI, DSI, chronoSTEP. Housing: high-pressure die-cast aluminum, painted.

Product details

NEW Energy efficient luminaires.
Harmonious shape and aesthetic design, high performance and efficiency.
Lifetime L90 B10 > 100,000 hours
Comes with a 5-year warranty

Efficacy Up to 170 lm/W
Light color 2700 – 6500K
Operating temperature -40°C ≤ Ta ≤ +40°C

IRIS 1 5050
Recommended mounting height: 4 – 15 m.
Power From 10 W to 130 W
Size 510 x 290 x 95 mm

IRIS 1 SQ
Recommended mounting height: 6 – 12 m.
Power From 20 W to 130 W
Size 510 x 290 x 95 mm

IRIS 2 5050
Recommended mounting height: 6 – 15 m.
Power From 80W to 200W
Size 610 x 295 x 95 mm

IRIS 2 SQ
Recommended mounting height: 6 – 15 m.
Power From 80W to 180W
Size 610 x 290 x 95 mm



ENIM PGS

Used for different types of outdoor lighting applications. Streets, bridges, passages, gas stations, railway platforms, parking lots and other areas.
Street lamps series PGS meet all modern requirements having high lumen output and competitive pricing.

Product details

Dynadimmer
Allows dimming to predefined light levels based on the nightly operating time. With flexibility in setting time and light levels, the user can configure the driver for specific locations and
application needs. Using Integrated Dynadimmer, it is possible to set up to 5 dim levels and time intervals. The driver does not have a real time clock. Instead it runs a virtual clock, determined by the length of nightly operating hours. After 3 ON-OFF cycles, the driver will calculate the virtual clock time. A valid ON-time is defined as a period during which the driver operates continuously for ≥4 hours to ≤24 hours.
A motion sensor can be associated with one or more luminaires which, when activated by passing cars, can signal the driver to override the dim cycle and go to full light output.

Lifetime L70 > 60000 h (Ts=80°Limited by TM21 rule 6x); L90 B10 > 100000h
Comes with a 5-year warrant

Light color 3000 – 5700 K
Operating temperature -40°C to +45°C
Efficacy Up to 134 lm/W
Power From 20 W to 70 W
Size 438 x 233 x 73 mm



ENIM PYRUS 1 & 2

Photometric solutions for lighting streets, pedestrian areas, parks and bike paths and etc.
Harmonious shape and aesthetic design, high-performance and efficiency.
Maintenance without tools.

Product details

Harmonious shape and aesthetic design, high performance and efficiency.
Lifetime L90 B10 > 100,000 hours
Operating temperature -40°C ≤ Ta ≤ +50°C
Light color 3000 – 6500 K
Comes with a 5-year warranty.

PYRUS 1
Power 40W, 50W, 60W, 70W, 80W, 90W, 100W
Size 606 x 300 x 130 mm

PYRUS 2
Power 100W, 110W, 120W, 130W, 140W, 150W, 160W, 170W, 180W, 190W, 200W
Size 762 x 370 x 128 mm

ENIM LSL-PULSAR

LED pedestrian crossing flash light (beacon) is designed to draw drivers attention to the pedestrian crossing and pedestrians.
It is oriented to face oncoming traffic. LED lights are flashing simultaneously what is sufficient for an average pedestrian to cross the street safely.

Product details

The PULSAR luminaire is mounted on a pedestrian crossing luminaire pole at a height of 4-5 m above the ground.
Light color 2200 K
Operating temperature -40°C to +40°C
Efficacy 100 lm/W
Power 6W
Size 220 x 120 x 130 mm
Inner diameter 76mm
Lumen 600 lm

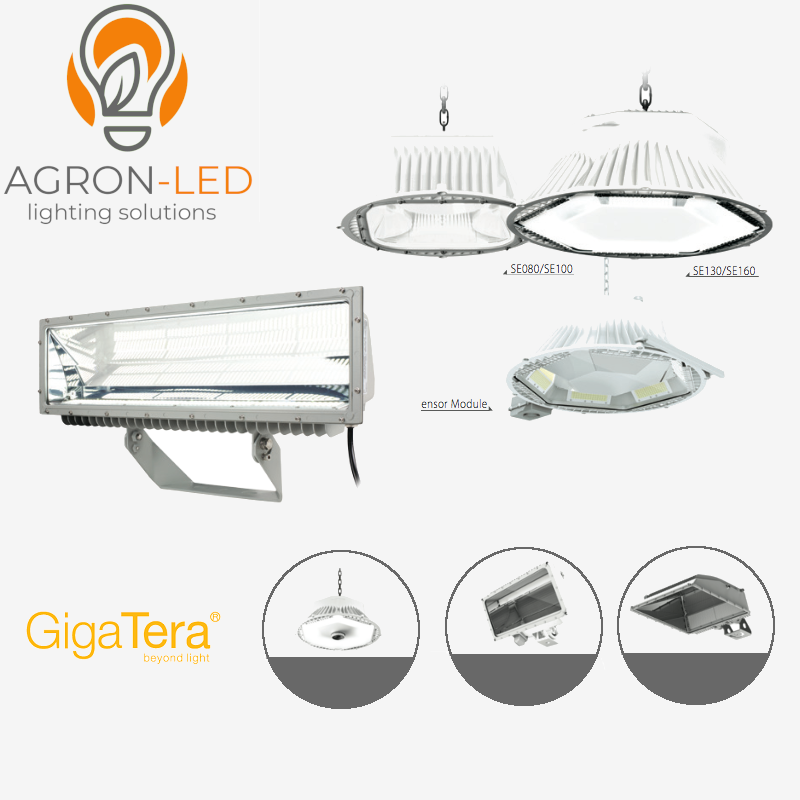

Bay LED Lighting

SEGA Series

Warehouse, superstore, airplane hangar, factory, gym, etc.

  • Long life cycle with vertical thermal fin structure
  • Wired and wireless dimming control associated with Occupancy / Light control system

IBL Series

Sports arena, gym, exhibition, warehouse, superstore, factory, etc.

  • Glare-free and high efficiency lighting
  • Easy replacement and installation

SEGA-High Power Series

Warehouse, superstore, airplane hangar, factory, gym, etc.

  • Optimized light distribution
  • Maximized heat dissipation via unique vertical cooling structure
  • Wireless and wired light control

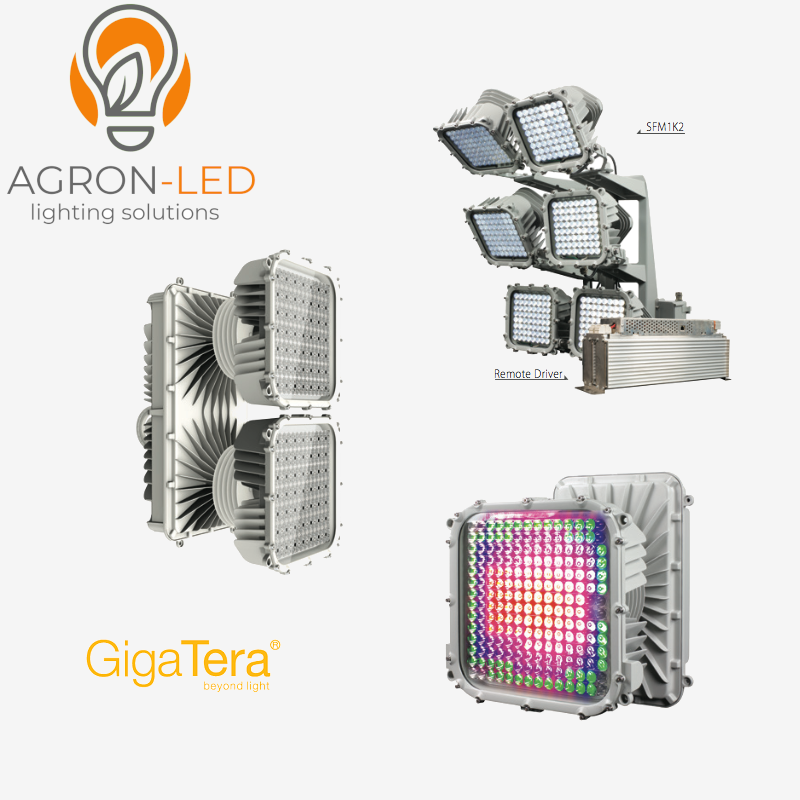

Flood LED Lighting

SUFA-H Series

Sports Facilities – soccer, football, field hockey, golf, skiing, etc.

  • Glare free from Narrow beam reflector
  • Flicker free proven upto 1,500 fps super slow-motion(SSM)
  • High CRI & R9 Content better visibility
  • Dimming control using wired communication

SUFA-A Series

Sports Facilities – soccer, football stadium

  • Glare free from Narrow beam reflector
  • Flicker free proven upto 1,500 fps ultra slow-motion
  • High CRI & R9 Content better visibility
  • Linkage with wired control system even for event light control

SUFA-M Series

Sports Facilities – basketball, valleyball, ice hockey, etc.

  • Stable cooling structure that points the heat release
  • Boosted installation efficiency thanks to the slimmed-down product
  • High CRI & R9 Content better visibility
  • Linkage with wired control system even for event light control

SUMA Series

Sports Facilities – soccer, football, field hockey, etc.
Airport apron, parking lot, harbour

  • Tilting structure for optimized aiming (Upward : 10˚, Downward : 20˚)
  • Dimming control using wireless and wired communication
  • Outstanding cooling technology and durability

MAHA Series

Sports Facilities – tennis, swimming, etc.
Airport apron, parking lot, harbour

  • Replacement for HID flood light
  • Outstanding cooling technology and durability
  • Excellent light distribution and thermal design for natural convection
  • Dimming control using wireless

WAPA Series

Wall pack, billboard, roadway, parking lot

  • Optimum heat radiation technology with natural convection.
  • Life cycle of the converter is guaranteed with an effective heat radiation structure.
  • Ultralight lighting with easy installation

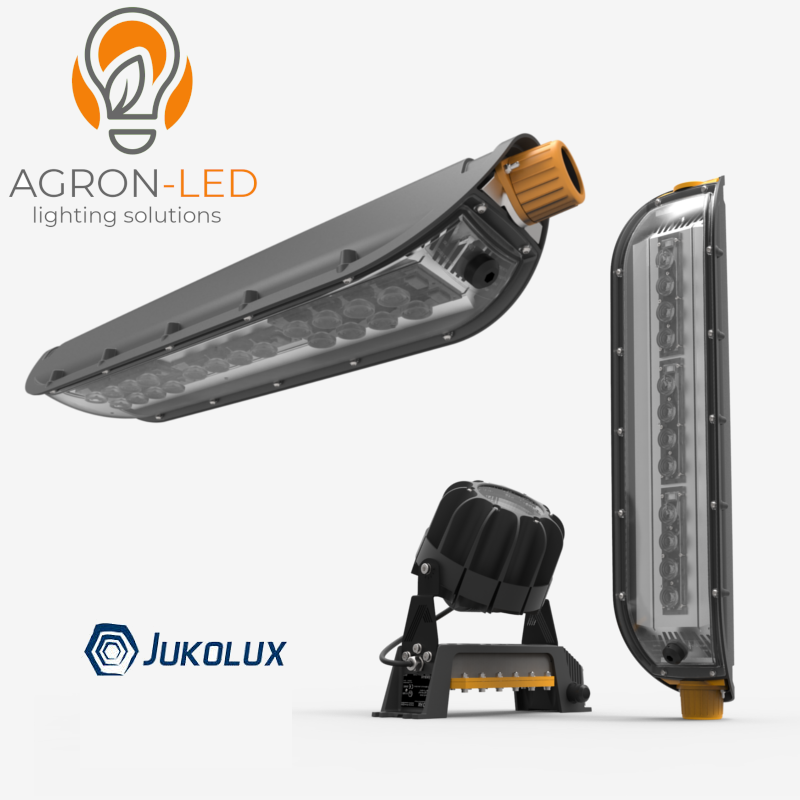

ATEX & Industrial LED Lighting

JUKO HX

EX environments. Certified according to the specifications of ATEX and IECEx standards

Powerful high bay solution for Hazardous Locations. Exceptional design and top of the class components secure functionality even in the harshest of conditions.

The JUKO® HX can be operated from -40°C up to +40°C. Virtually maintenance free. Different beam widths suit for all high bay needs.

JUKO LX

EX environments. Certified according to the specifications of ATEX and IECEx standards

Versatile low bay solution for Hazardous Locations. It has a special PA6 blend enclosure that is definitely like no other. Easy and innovative installation adapters makes this a very fast product to install.

One of the best solutions for replacing old linear lighting fixtures.

ATEX

Hazardous locations or areas (EX/ATEX) are places where fire or explosion hazard may exist due to flammable gasses, vapors, mists, fibers or dusts.

All electrical equipment that are installed in these areas must be designed according to a strict set of standards and inspected/certified by an independent third party.

This process of certification guarantees that the electrical equipment is suitable to be installed in these very demanding environments.

All of our products are designed and manufactured in Finland to make sure that we deliver only the highest possible quality. With unique ideas and superb engineering, we have been able to create solutions that are safe, efficient, long-lasting and innovative.

JUKO HXi

Functional, long-lasting and energy efficient LED lights for demanding industrial environments.

Powerful high bay solution for industrial Locations. Exceptional design and top of the class components secure functionality even in the harshest of conditions. Enclosure design based on our award winning ATEX product JUKO® HX.

JUKO LXi

Functional, long-lasting and energy efficient LED lights for demanding industrial environments.

Exceptional solution for all industrial environments. Mass customizable luminaire to meet all customer needs. Perfect replacement for low bay applications with great efficacy, lifespan and virtually no need for maintenance.

Industrial

Industrial environments can range from one extreme to another. Some areas may have very high temperatures and humidity and others can be extremely cold and dry.

There might also be a lot of different acids and fibers or dust particles in the air. The possibilities and combinations are almost endless.

Therefore, the LED lights in industrial environments must be as versatile.

For demanding industrial environments, we have mass-customizable products that are manufactured with the same methods as our ATEX luminaires, we just have more versatile options as there are no restricting standards.

We have a solution for all of your industrial lighting needs.

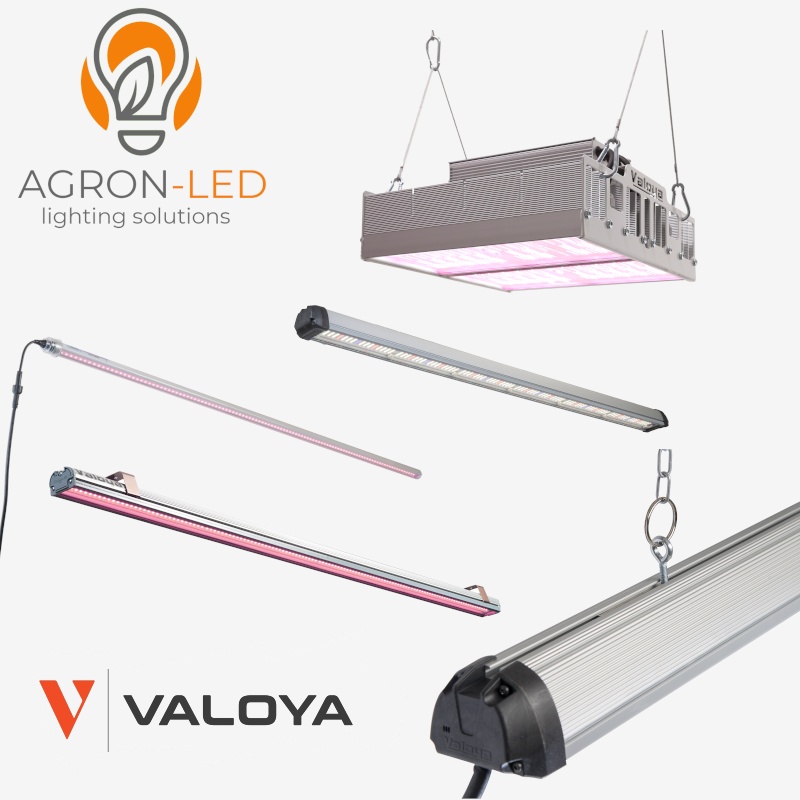

Holticulture LED Lighting

L-Series

For rooms and chambers, tissue culture and vertical farming.

Slim and light LED tubes that produce virtually no heat. Can be placed extremely close to the canopy while preserving absolute uniformity.

C-Series

For rooms and chambers, tissue culture and vertical farming.

Slim and powerful LED bars with a dimming function. Lightweight, yet with high intensity, the C-Series is highly versatile.

BX-Series

For rooms and chambers, large indoor cultivation, greenhouses and HPS hybrid installations.

High power LED bars with a dimming function and a high IP rating (IP67 – wet location). Valoya’s bestseller.

BL-Series

For greenhouses, rooms and chambers and HPS hybrid installations.

BL-Series combines the high intensity and durability of the BX-Series with the chainability feature (up to 16 luminaires on a single mains input) and an internal driver.

RX-Series

For greenhouses and HPS hybrid installations.

Designed as a replacement for HID lighting, the RX-series is a high power, dimmable LED luminaire that can be placed up to 4 meters (12′) above the canopy.

LightDNA

For demanding research applications (growth rooms and chambers)

The most sophisticated application of the LED technology in horticulture. LightDNA is line of LEDs designed for the delivery of accurate natural outdoor light conditions to indoor growing environments. Controlled by an online software application (LightDNA-8 model), researchers can replicate sunlight from any part of the world with a click of a button.

Share This
